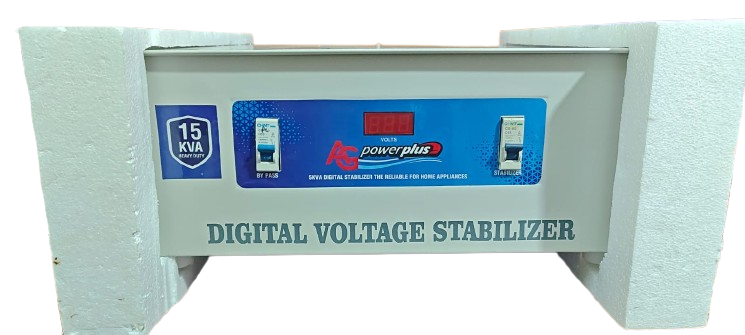

The AG Power Plus 15kVA Mainline Stabilizer is a high-capacity voltage protection solution designed for large homes, offices, showrooms, and small industries. With a wide input range of 70V to 320V, it ensures a stable 245V output even during extreme voltage fluctuations.

Built with 100% copper winding, an intelligent microprocessor-based control system, and a heavy-duty metal body, this stabilizer delivers reliable performance, long service life, and complete protection for all electrical equipment connected to your main power line. It is ideal for running multiple air conditioners, motors, refrigerators, and the entire home load efficiently.

Key Features:

• Input Voltage Range: 70V – 320V

• Output Voltage: 245V ± 5%

• Capacity: 15kVA (Mainline) – suitable for entire home, office, or commercial load

• Body Type: Heavy-duty metal body for long-lasting durability

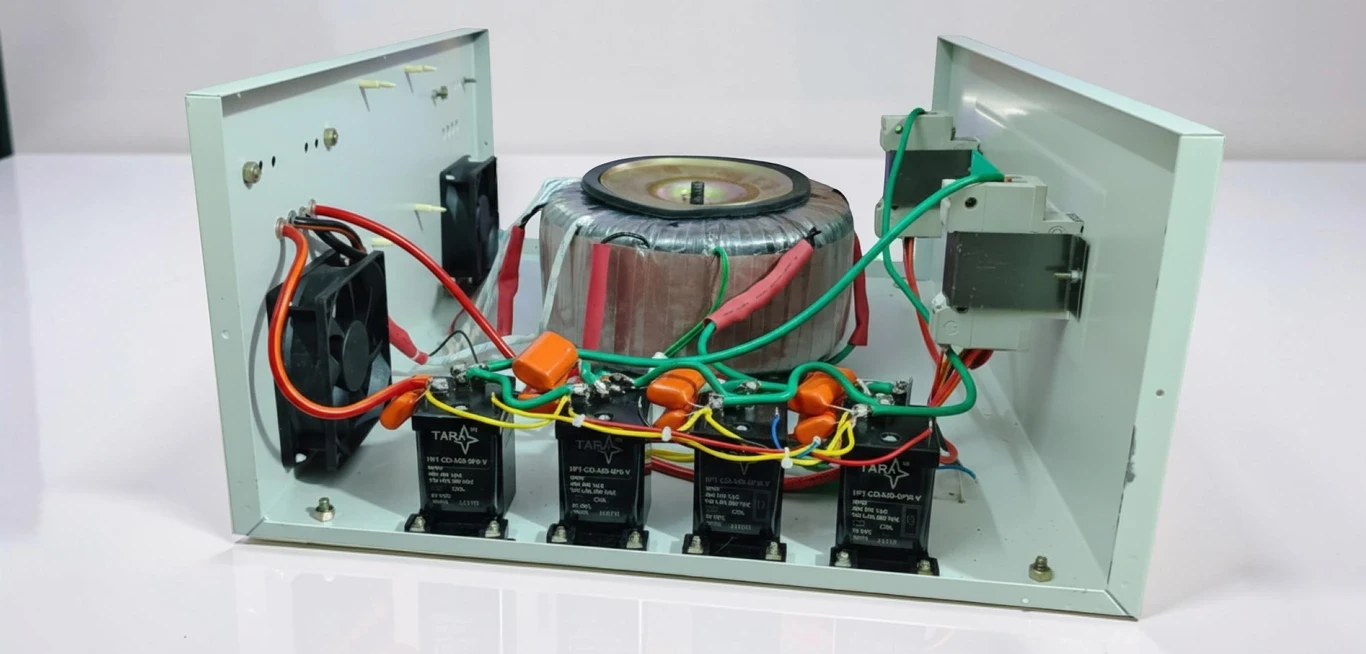

• Winding Type: 100% Copper winding for superior efficiency and stability

• Technology: Microprocessor-based smart voltage correction system

• Display: Digital Input & Output Voltage Display for easy monitoring

• Cooling System: High-speed automatic cooling fan for better performance

• Protection Features:

  • High & Low Voltage Cut-off

  • Overload Protection

  • Short Circuit Protection

  • Thermal Overheat Protection

• Application: Ideal for homes, offices, commercial complexes, and small industries

Technical Specifications:

• Power Capacity: 15kVA

• Input Voltage: 70V–320V

• Output Voltage: 245V ± 5%

• Output Accuracy: ±5%

• Frequency: 50 Hz

• Mounting Type: Floor Mount / Wall Mount (optional)

• Body Material: Heavy Metal

• Color: Metallic Grey or White (as per availability)

Warranty:

• Warranty Period: 3 Years (2 Years Full + 1 Year Service Support)

• Service Type: Off-site warranty – contact AG Power Plus service team for repair or replacement

• Covered in Warranty: Transformer winding, PCB, relay, and internal electrical faults

• Not Covered in Warranty: Physical damage, water damage, unauthorized repair, or short-circuit due to external load
